A webbing strap rarely performs poorly because nylon or polyester is inherently weak. Problems start when the material response conflicts with the job, such as a flexible strap in an assembly requiring fixed tension or moisture-sensitive webbing left outdoors for long periods. Nylon generally offers more elasticity and better energy absorption. Polyester generally offers lower stretch, lower moisture uptake, and stronger dimensional stability in wet conditions. Polyester is usually the better starting point for outdoor or tension-sensitive products, while nylon is better for products where flexibility and shock absorption are important to the design.
Material selection matters because the fiber name does not define the finished strap. Width, thickness, yarn, weave, edge construction, and finishing all influence how webbing carries load and wears. National Webbing offers nylon products in various weights, weaves, widths, and colors, reflecting the range of performance available within a single fiber family. The Museum of Fine Arts, Boston’s CAMEO materials database describes nylon as strong, tough, and elastic, while polyester is strong and resistant to stretching. The right choice, therefore, depends on the specific webbing construction, the expected load, and the service environment. (nationalwebbing.com)
The largest difference between nylon and polyester is not basic strength. Both fibers support strong webbing constructions when the yarn and weave match the application. The more useful comparison centers on how each material behaves after tension, water, sunlight, and repeated movement enter the picture. This comparison provides a practical starting point before reviewing the specifications for an individual webbing product.
| Selection factor | Nylon webbing | Polyester webbing | Better starting point |
| Response to load | Stretches more and absorbs more energy | Stretches less and holds its position more consistently | Nylon for controlled movement, polyester for stable tension |
| Moisture exposure | Absorbs more atmospheric moisture and changes more as humidity rises | Absorbs little atmospheric moisture and stays more dimensionally stable | Polyester for wet or humid service |
| Long-term outdoor use | Needs careful review for sunlight and moisture exposure | Usually favored where low stretch and low moisture uptake matter outdoors | Polyester for sustained outdoor exposure |
| Flexibility | Often softer and more elastic | Often firmer and less elastic | Nylon where flexibility supports comfort or movement |
| Abrasion | Often performs well during bending and repeated flexing | Often performs well where stability matters during repeated use | Compare the exact weave and wear pattern |
| Breaking strength | Determined by the finished construction | Determined by the finished construction | Use the product specification, not the fiber name |
| Best general fit | Dynamic products and flexible assemblies | Outdoor products and tension-sensitive assemblies | Match the material response to the job |
Neither nylon nor polyester has one universal breaking strength. A one-inch strap might be lightweight webbing for a bag, a dense industrial construction, or a product woven for a specialized assembly. Those products share a width but do not share the same yarn mass, weave, thickness, or tested strength. This is why broad claims that assign a single breaking-strength range to every nylon or polyester strap create a false sense of precision. Breaking strength should come from the specification for the exact webbing under review.
The base fiber still influences performance, but the construction turns it into a working component. Nylon webbing and polyester are strong synthetic fibers, with nylon’s elasticity and polyester’s resistance to stretching. Those properties describe how the fibers behave, not the capacity of a sewn strap, buckle assembly, or finished product. Stitching and hardware also introduce separate points where an assembly might deform or fail. A strong webbing roll does not automatically produce an equally strong finished strap.
Nylon’s elasticity gives the material its clearest advantage. Under tension, nylon generally lengthens more than polyester and recovers after the load is removed. This movement allows a nylon strap to absorb part of the energy created by a sudden pull. CAMEO describes nylon fibers as elastic and tough, which explains their use in products where controlled movement supports comfort or performance. The same movement becomes a drawback when a strap must hold a precise adjustment. (cameo.mfa.org)
Polyester suits products where the strap needs to remain closer to its original length. CAMEO describes polyester as resistant to stretching, although the database also shows a wide range of elongation across polyester fibers. That range matters because the finished weave still controls the amount of movement seen in a specific strap. Polyester does not mean zero stretch, and nylon does not mean unlimited stretch. The useful question is how much elongation the finished webbing shows under the expected operating load.
General material properties do not qualify webbing for climbing, fall protection, lifting, towing, or restraint applications. Those uses involve complete systems with defined ratings, test methods, design requirements, and inspection rules. A generic nylon strap does not become fall-protection webbing because nylon absorbs energy. A generic polyester strap does not become a rated tie-down because polyester stretches less. Safety-critical products require webbing and assemblies developed for the specific use.
Moisture produces one of the most measurable differences between nylon and polyester. CAMEO reports a moisture-regain range of 4.2 to 5 percent for nylon fiber and 0.1 to 0.4 percent for polyester fiber. Moisture regain measures the water a dried material reabsorbs after reaching equilibrium under controlled temperature and humidity. The figures do not describe a strap submerged in water, but they show a major difference in how readily each fiber interacts with atmospheric moisture. Nylon responds more noticeably to humidity, while polyester stays closer to its dry dimensions and feel.
This difference matters when a strap moves between wet and dry conditions. Nylon often takes longer to return to its dry state and experiences more change as moisture levels shift. Polyester absorbs far less atmospheric moisture, which supports faster drying and more consistent dimensions. Those traits make polyester a stronger starting point for marine products, outdoor equipment, and straps exposed to rain or persistent humidity. The finished construction still needs review because stitching, coatings, and hardware respond to moisture separately from the webbing fiber.
Low moisture absorption does not make polyester webbing immune to environmental damage. Salt, dirt, chemicals, and retained moisture around metal hardware still shorten service life. Water also carries abrasive particles into buckles and contact points. A polyester strap left dirty and wet might wear faster than a clean nylon strap used in controlled conditions. Fiber choice reduces one source of variation but does not replace product care or inspection.

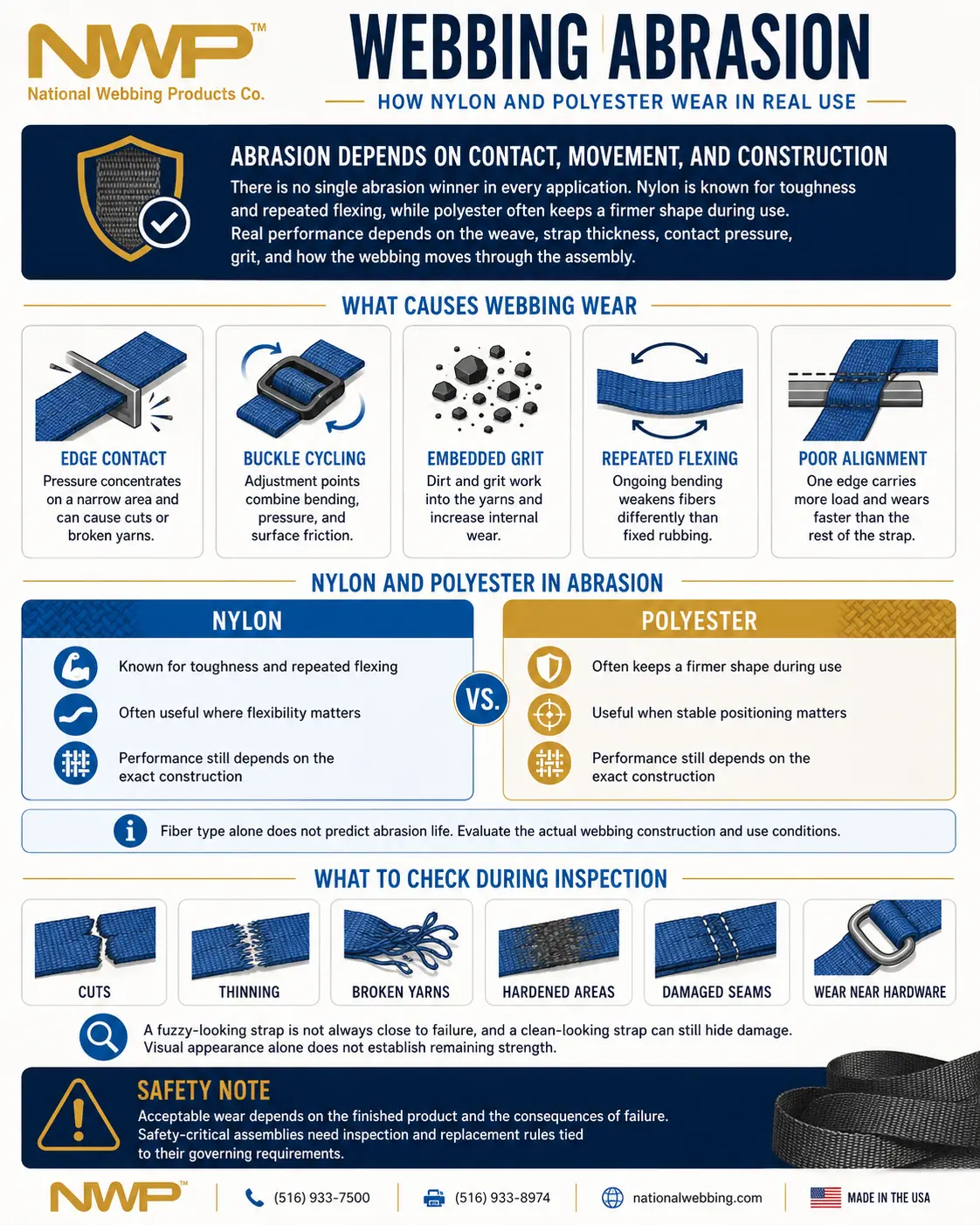

Abrasion resistance does not have one universal winner. Nylon holds a strong reputation for toughness and repeated flexing, while polyester often maintains a firmer shape during use. Neither statement predicts what happens when the webbing passes through a rough buckle or drags against an exposed edge. The finished weaves, strap thickness, contact pressure, and contaminating grit often matter more than a simple fiber comparison. Abrasion should be evaluated around the actual movement built into the product.
Which is the Right Choice, Nylon Webbing or Polyester Webbing?

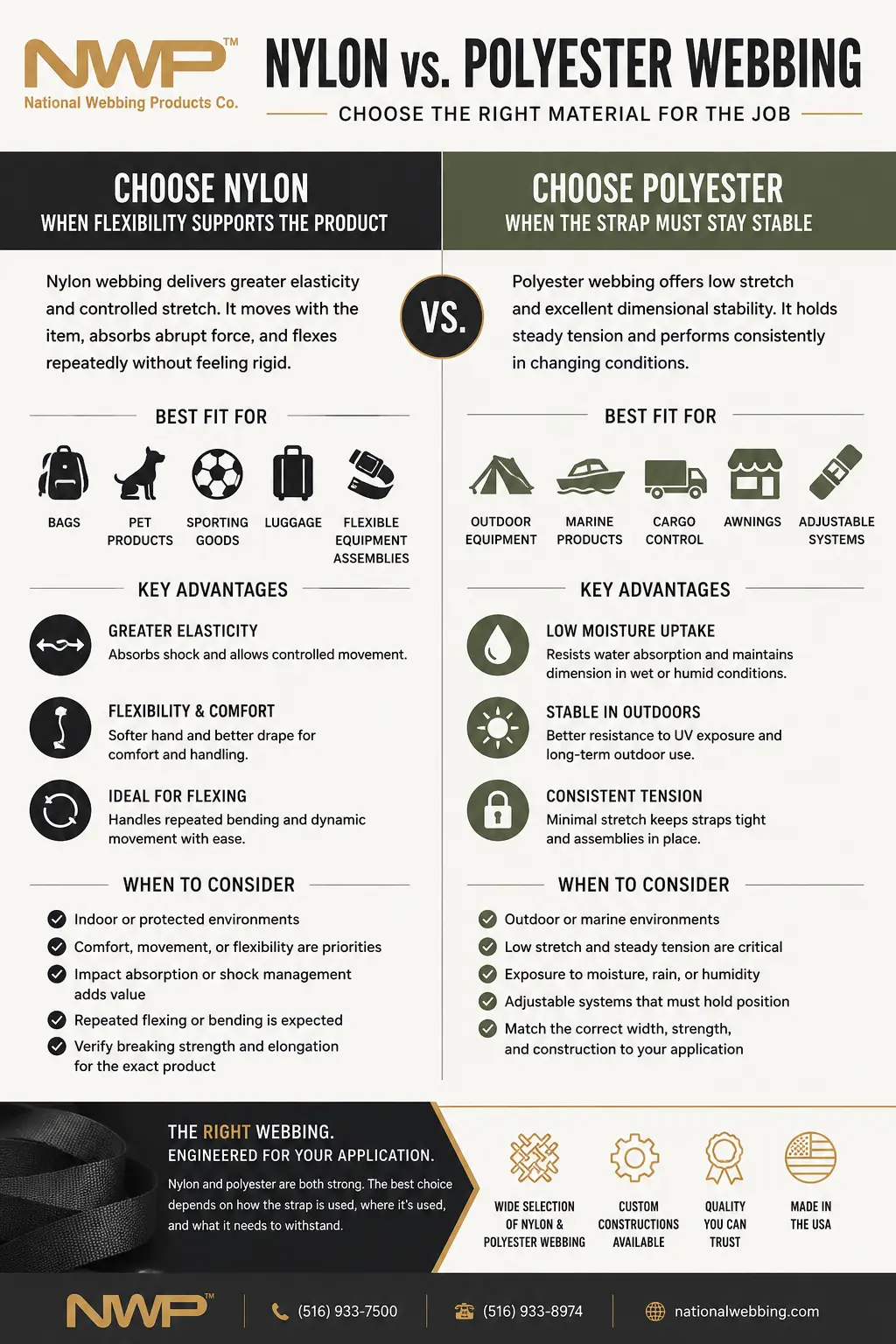

The choice between nylon and polyester becomes clearer once the load and environment are defined. Nylon favors flexibility, controlled stretch, and energy absorption. Polyester favors stable tension, low moisture uptake, and consistent outdoor performance. Neither material earns a universal strength advantage because the finished weave controls the working specification. The best webbing is the construction whose test results match the actual product.
National Webbing manufactures woven nylon webbing in various weights, widths, weaves, and colors, and supplies polyester options for military and industrial applications. This range supports a more precise decision than selecting a material name from a general comparison. Contact National Webbing to discuss the operating environment, required dimensions, load response, and finished assembly. A focused material and construction review helps determine where nylon or polyester provides a real performance advantage.
